1500W Parallel Operation Switching Power Supply

1500W Parallel Operation Switching Power Supplyمنبع تغذیه سوئیچینگ موازی ام دبلیو دبلیو سری ظرفیت 1500W

Model : 1500W

Brand:MWW

Product Features:

1. AC input 200~240V only
2. Protections: Short circuit / Overload / Over voltage / Over temp.
3. High reliability/ Low ripple noise
4. Built-in remote sense function
5. Built-in remote ON-OFF control
6. Built-in parallel operation function
7. Can adjust from 20~100% output  voltage by external control 1-5V
8. Forced air cooling by built-in DC fan
9. Case coating with paint
10. 2 years warranty




  • Product Catalog

    Model
    Specification
    SCN-1K5-12
    SCN-1K5-15
    SCN-1K5-24
    SCN-1K5-48
    DC Output Voltage
    12V
    15V
    24V
    48V
    Iutput Voltage Error
    ± 1%
    ± 1%
    ± 1%
    ± 1%
    Rated Output Current
    125A
    100A
    62.5A
    32A
    Output Current Range
    0-125A
    0-100A
    0-62.5A
    0-32A
    Tripple and Noise
    240mVp-p
    240mVp-p
    240mVp-p
    480mVp-p
    Voltage Adj range
    ±5.0% typical adjustment by potentiometer         20~100% adjustment by 1~5VDC external control
    Iniet Stability
    ± 0.5%
    ± 0.5%
    ± 0.5%
    ± 0.5%
    Tolerance Voltage
    ± 1%
    ± 1%
    ± 1%
    ± 1%
    DC Output Power
    1500W
    1500W
    1500W
    1536W
    Efficiency
    84%
    83%
    85.5%
    87%
    AC Input Voltage Range
    200 ~ 240VAC   290 ~ 370VDC
    Input Current
    15.0A/230VAC
    AC Inrush Current
    Cold-Start Current: 120A / 230VAC
    Leakage Current
    3.5mA/240VAC
    Overload Protection
    110 ~ 135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover
    Over Voltage Protection
    110 ~ 135% follow to output set up point, Shut down o/p voltage, re-power on to recover
    High Temperature Protection
    >100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover
    Temperature Coefficient
    ± 0.04% /℃ (0~50℃)
    Start, Rise, Hold time
    800ms, 50ms, 16ms at full load
    Vibration
    10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
    Withstand Voltage
    I/P-O/P, I/P-FG:1500VAC
    Isolation Resistance
    I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH
    Working Temp,Humidity
    `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
    Storage Temp,Humidity
    `20℃~+85℃, 10%~95%RH
    MTBF
    60Khrs min.  MIL-HDBK-217F (25 ℃)

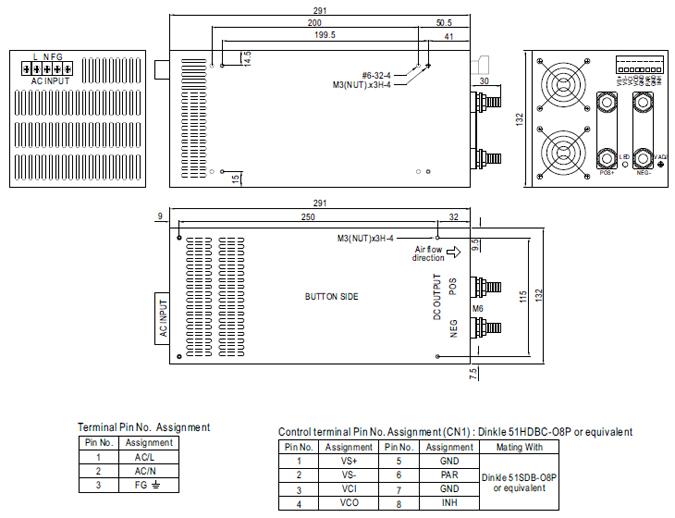

    Overall Dimension
    291*132*132 mm
    Weight
    4.75 kgs
    Special function
    DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual)
    Safety Standards
    CE
    EMC Standards
    Meet FCC Part 15J Conduction class A



    -10℃~+60℃



    CE  approved
