50W Dual Output Switching Power Supply

Model : 50W

Brand:MWW

Product Features:

1. Low  price and high reliable.
2. 105 `C output capacitor
3. AC input power suitable for the world
4. High efficiency and how  operation temperature.
5. Soft-start current can reduce  the AC input impact effecticly.
6. With short-circuit and overload protection.
7. Compact size, light weight.
8. 100% full-load buming test.
9. installed with EMI filter, minmum wave.

  • Product Catalog

    Model
    Specification
    D-50 A
    D-50 B
    DC Output Voltage
    5V
    12V
    5V
    24V
    Iutput Voltage Error
    ± 2%
    ± 3, -7%
    ± 2%
    ± 3, -5%
    Rated Output Current
    6A
    2A
    6A
    1A
    Output Current Range
    1-6A
    0.3-2A
    1-6A
    0.2-1A
    Tripple and Noise
    50mVp-p
    100mVp-p
    50mVp-p
    100mVp-p
    Iniet Stability
    ± 0.5%
    ± 1%
    ± 0.5%
    ± 1%
    Tolerance Voltage
    ± 0.5%
    ± 5%
    ± 0.5%
    8%
    DC Output Power
    54W
    54W
    Efficiency
    73%
    73%
    Adjustable Range for DC Voltage
    `+10, -5%
    ± 10, -5%
    AC Input Voltage Range
    85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
    Input Current
    1.3A/115V    0.65A/230V
    AC Inrush Current
    Cold-Start Current: 18A/115V, 36A/230V
    Leakage Current
    <0.5mA/240VAC
    Overload Protection
    105%~150%   Type: Foldback Current Limiting, Reset: Auto Recovery
    Over Voltage Protection
    …………
    High Temperature Protection
    …………
    Temperature Coefficient
    ± 0.03% /℃ (0~50℃)
    Start, Rise, Hold time
    200ms, 50ms, 30ms
    Vibration
    10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
    Withstand Voltage
    Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
    Isolation Resistance
    Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
    Working Temperature and Humidity
    `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH
    Storage Temperature and Humidity
    `20℃~+85℃, 10%~95%RH

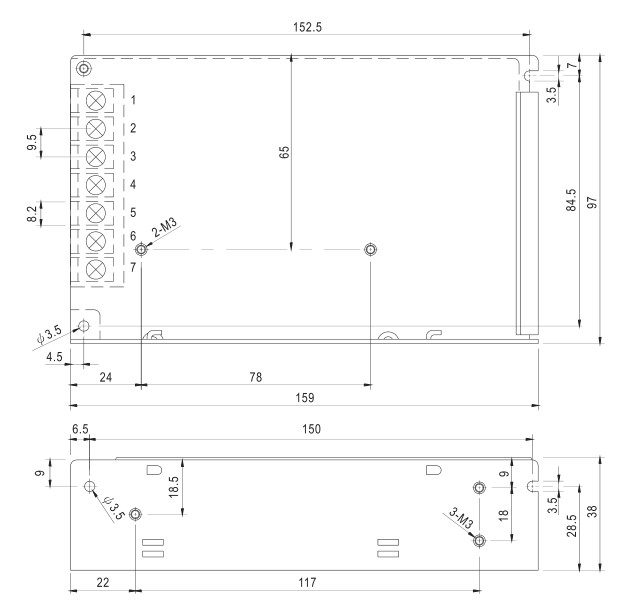

    Overall Dimension
    159*98*38 mm
    Weight
    0.52 kgs
    Safety Standards
    CE
    EMC Standards
    Meet FCC Part 15J Conduction class B



    -10℃~+60℃



    CE  approved
