MODEL
|
RS-100-3.3
|
RS-75-5
|
RS-75-12
|
RS-75-15
|
RS-75-24
|
RS-75-48
|
|
OUTPUT
|
DC VOLTAGE
|
3.3V
|
5V
|
12V
|
15V
|
24V
|
48V
|
|
RATED CURRENT
|
20A
|
16A
|
8.5A
|
7A
|
4.5A
|
2.3A
|
|
CURRENT RANGE
|
0 ~ 20A
|
0 ~ 16A
|
0 ~ 8.5A
|
0 ~ 7A
|
0 ~ 4.5A
|
0 ~ 2.3A
|
|
RATED POWER
|
66W
|
80W
|
102W
|
105W
|
108W
|
110.4W
|
|
RIPPLE & NOISE (max.) Note.2
|
80mVp-p
|
80mVp-p
|
120mVp-p
|
120mVp-p
|
120mVp-p
|
200mVp-p
|
|
VOLTAGE ADJ. RANGE
|
3.2V ~ 3.5V
|
4.75 ~ 5.5V
|
11.4 ~ 13.2V
|
14.25 ~ 16.5V
|
22.8 ~ 26.4V
|
45.6 ~ 52.8V
|
|
VOLTAGE TOLERANCE Note.3
|
3.00%
|
2.00%
|
1.00%
|
1.00%
|
1.00%
|
1.00%
|
|
LINE REGULATION
|
0.50%
|
0.50%
|
0.50%
|
0.50%
|
0.50%
|
0.50%
|
|
LOAD REGULATION
|
2.00%
|
1.00%
|
0.50%
|
0.50%
|
0.50%
|
0.50%
|
|
SETUP, RISE TIME Note.5
|
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
|
|
HOLD UPTIME (Typ.)
|
60ms/230VAC 14ms/115VAC at full load
|
|
|
VOLTAGE RANGE
|
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
|
|
INPUT
|
FREQUENCY RANGE
|
47 ~63Hz
|
|
EFFICIENCY (Typ.)
|
74.00%
|
77.00%
|
81.00%
|
82.00%
|
84.00%
|
84.00%
|
|
AC CURRENT (Typ.)
|
2.5A/115VAC 1.5A/230VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 40A/230VAC
|
|
LEAKAGE CURRENT
|
<2mA / 240VAC
|
|
PROTECTION
|
OVERLOAD
|
110 ~ 150% rated output power
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
OVER VOLTAGE
|
3.8 ~ 4.45V
|
5.75 ~ 6.75V
|
13.8 ~ 16.2V
|
17.25 ~ 20.25V
|
27.6~ 32.4V
|
55.2 ~ 64.8V
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-25~70℃ （Refer to: Derating Curve"）
|
|
WORKING HUMIDITY
|
20 ~ 90% RH non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-40 ~ +85C, 10 ~ 95% RH
|
|
TEMP. COEFFICIENT
|
±0.03%/C (0 ~ 50℃)
|
|
VIBRATION
|
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
|
|
SAFETY &EMC (Note 4)
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25C/ 70% RH
|
|
EMC EMISSION
|
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
|
|
OTHERS
|
MTBF
|
265Khrs min. MIL-HDBK-217F (25 )
|
|

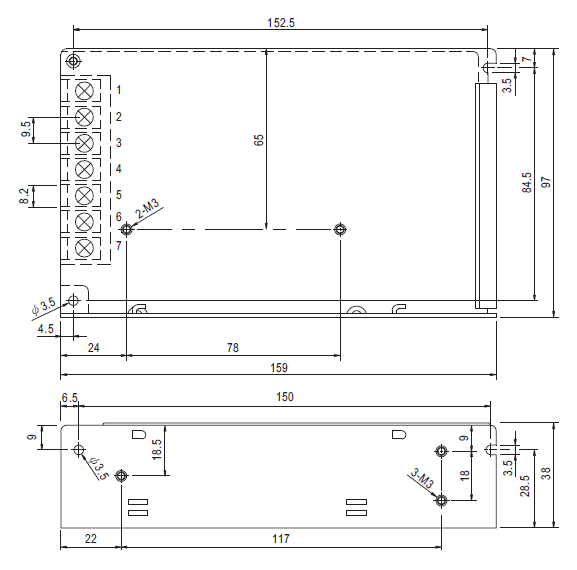

DIMENSION
|
159*97*38mm (L*W*H)
|
