150W PFC Function Power Supply

Model : 150W

Brand:MWW

Product Features:

1. Universal AC input / Full range
2. Built-in active PFC function, PF>0.93
3. Protections: Short circuit / Overload / Over voltage / Over temperature
4. Built-in constant current limiting circuit
5. Remote ON-OFF control(Optional)
6. LED indicator for power on
7. 100% full load burn-in test
8. Fixed switching frequency at PFC:67KHz PWM:134KHz
9. 2 years warranty

Product Catalog

Model Specification	SP-150-3.3	SP-150-5	SP-150-7.5	SP-150-12	SP-150-13.5	SP-150-15	SP-150-24	SP-150-27	SP-150-48
DC Output Voltage	3.3V	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Iutput Voltage Error	± 2%	± 2%	± 2%	± 2%	± 2%	± 2%	± 1%	± 1%	± 1%
Rated Output Current	30A	30A	20A	12.5A	11.2A	10A	6.3A	5.6A	3.2A
Output Current Range	0-30A	0-30A	0-20A	0-12.5A	0-11.2A	0-10A	0-6.3A	0-5.6A	0-3.2A
Tripple and Noise	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	250mVp-p
Iniet Stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Tolerance Voltage	± 1%	± 1%	± 1%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%	± 0.5%
DC Output Power	99 W	150W	150W	150W	151.2W	150W	151.2W	151.2W	153.6W
Efficiency	67%	75%	79%	80%	83%	81%	83%	84%	84%
Adjustable Range for DC Voltage	3.14 ~ 3.63V	4.75 ~ 5.5V	7.13 ~ 8.25V	11.4 ~ 13.2V	12.8 ~ 14.9V	14.3 ~ 16.5V	22.8 ~ 26.4V	25.7 ~ 29.7V	45.6 ~ 52.8V
AC Input Voltage Range	85 ~ 264VAC 120 ~ 370VDC 47-63HZ
Power factor	PF>0.93/230VAC PF>0.98/115VAC at full load
Input Current	2.5A/115V 1.2A/230V
AC Inrush Current	Cold-Start Current: 40A/230V
Leakage Current	<2mA/240VAC
Overload Protection	105%~150% rated output power ,Protection type : Constant current limiting, recovers automatically after fault condition is removed
Over Voltage Protection	3.8-4.46V	5.75-6.75V	8.63-10.13V	13.8-16.2V	15.53-18.2V	17.25-20.25V	27.6-32.4V	31.05-36.45V	55.2-64.8V
Over Voltage Protection	Protection type : Shut down o/p voltage, re-power on to recover
REMOTE CONTROL(OPTION)	CN1:4 ~ 10VDC POWER ON, <0 ~ 0.8VDC POWER OFF
Temperature Coefficient	±0.05%/℃ (0 ~ 50℃)
Start, Rise, Hold time	600ms, 30ms at full load ,hold time:20ms at full load
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working Temperature and Humidity	.-10~+60℃ (Refer to "Derating Curve"), 20 ~ 90% RH non-condensing
Storage Temperature and Humidity	`-20℃~+85℃, 10%~95%RH

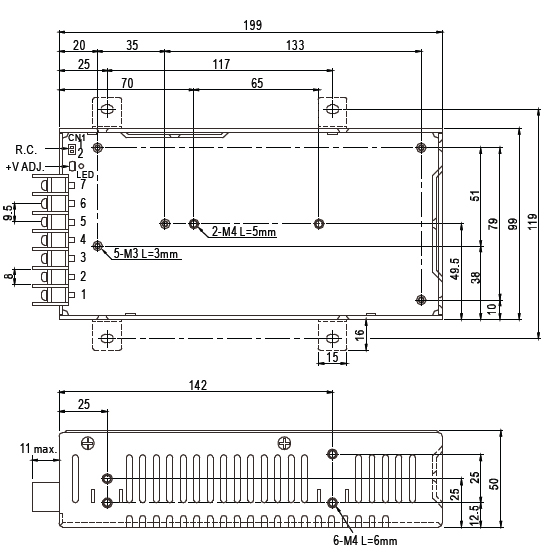

Overall Dimension	1999550mm
MTBF	191.2k hrs min.
Safety Standards	CE
EMC Standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
